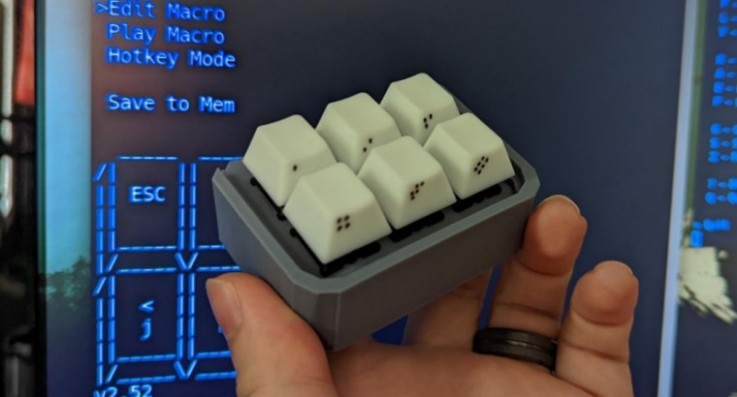

Automation: MikeMike

MikeMike lets you build mouse and keyboard automation without flashing or reprogramming! Get yours here!

Keyboards

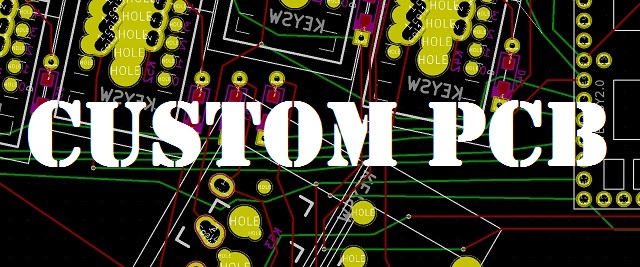

Custom Circuit Boards!


Do you have a folder on your desktop full of keyboard pictures that you wish you could hack together a la carte into your perfect endgame keyboard?

Then stop adjusting your needs to what already exists, and will your endgame into existence! Go full custom with a PCB and case fitted to your functional and physical specifications!

Custom designed PCBs with or without assembly: $250-$750 initiate order via email

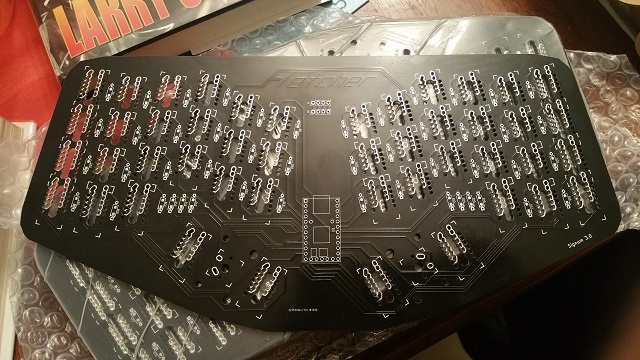

Signum 3.0 Circuit Board!



Watch the rest of the build guide videos HERE!

Benefits Features:

  • Designed to get you the most mech for your buck!

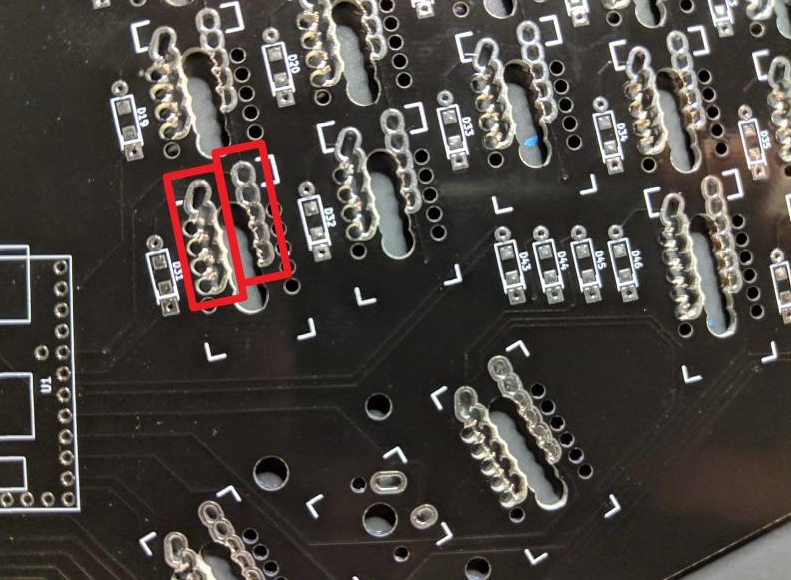

  • Each column supports 5 or 6 switch positions!
  • Columns support grid layout positions!
  • Adjust column height to YOUR by finger lengths
  • Adjustable thumb cluster with improved 3rd key position
  • Low profile, light weight caseless design
  • Designed to sit on a laptop keyboard without activating buttons
  • Cable mount to prevent connector damage from accidental cable pulls
  • Ergonomic typing wrist angle
  • Now supports Teensy 2.0, Pro Micro, and the Elite-C
  • Subtle A E S T H E T I C S
  • Programmable with QMK and EasyAVR 😱 😱

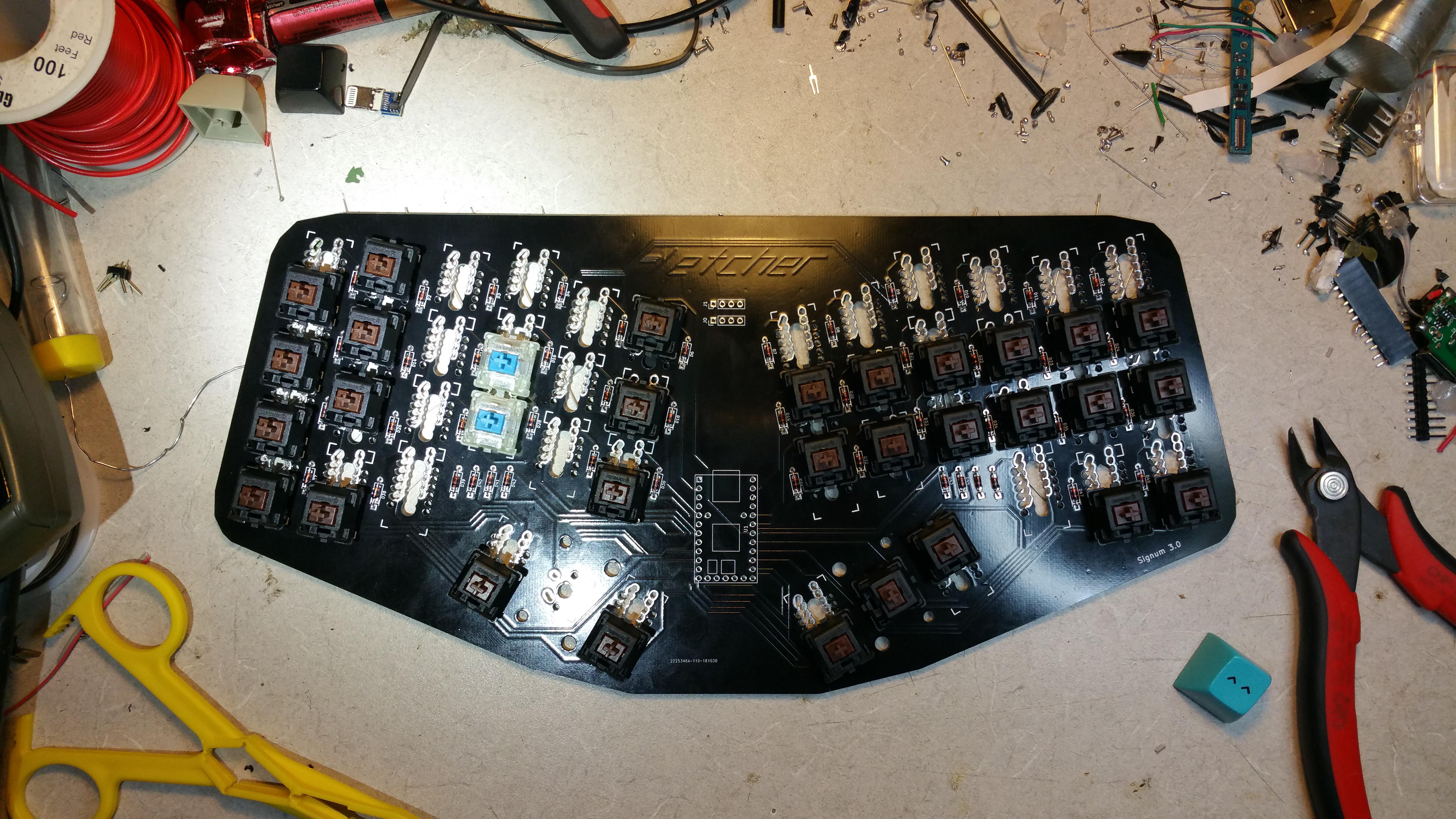

The Signum 3.0 PCB makes it easy to DIY a ergonomic mechanical keyboard customized to your needs and hand size! Add diodes, (1N4148) your choice of keycaps and switches (Cherry and Alps compatible), your choice of micro controller (Teensy 2.0 or ProMicro compatible!), and you're ready to solder!

Watch the video build guide HERE! UPDATE: Joe Blankenship made a build guide!

9/11/22 - New lower price
$50 USD (includes CONUS shipping!) Friendship with Paypal over! If you have a payment method other than Paypal you prefer, please email me what alternative payment method you would like to see here.

Order using Bitcoin!

Send me an Email, then send 0.0026 BTC to

1BU58jNiX3jEUMBENVxgmdxFzTX5AGAAMg

or request a freshly generated address

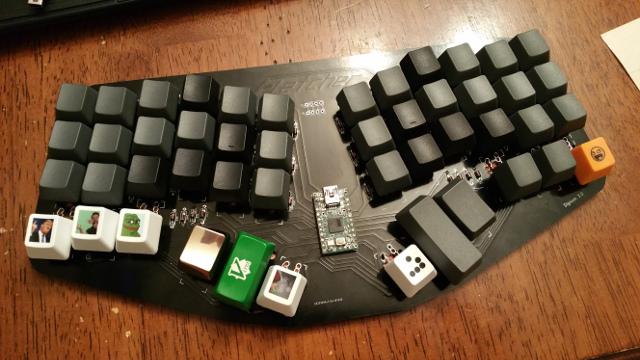

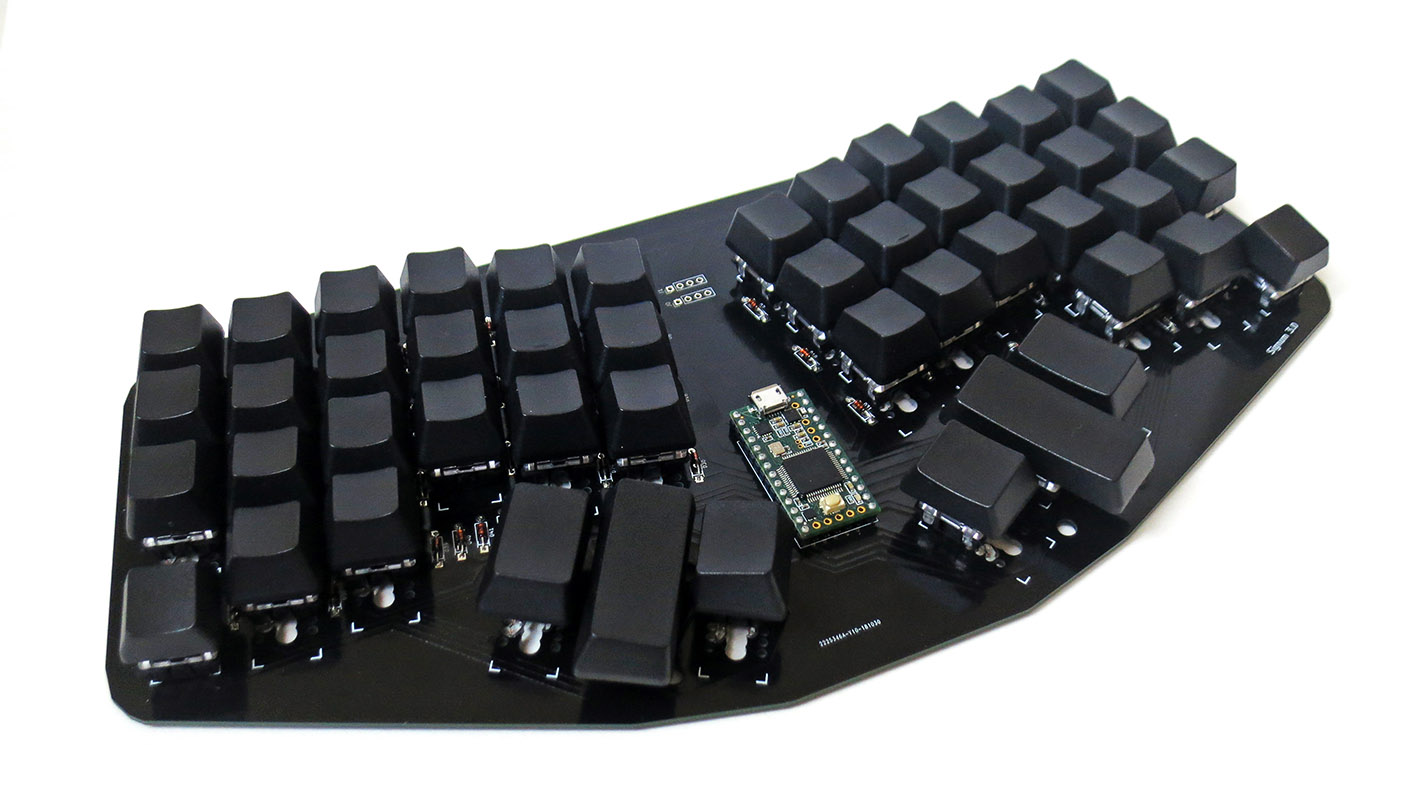

Completed Signum 3.0 Keyboard

Fully assembled Signum 3.0

Signum series boards come with custom fitting (print and fill out a sheet), blank Gray PBT keycaps, Gateron Brown switches, Teensy 2.0 (usb mini connector, programmed), and orange desk mat base. (Availability of parts may change)

Custom Fitted, fully assembled board shipped CONUS $250 ($275 intl. 0.013 BTC order via email)

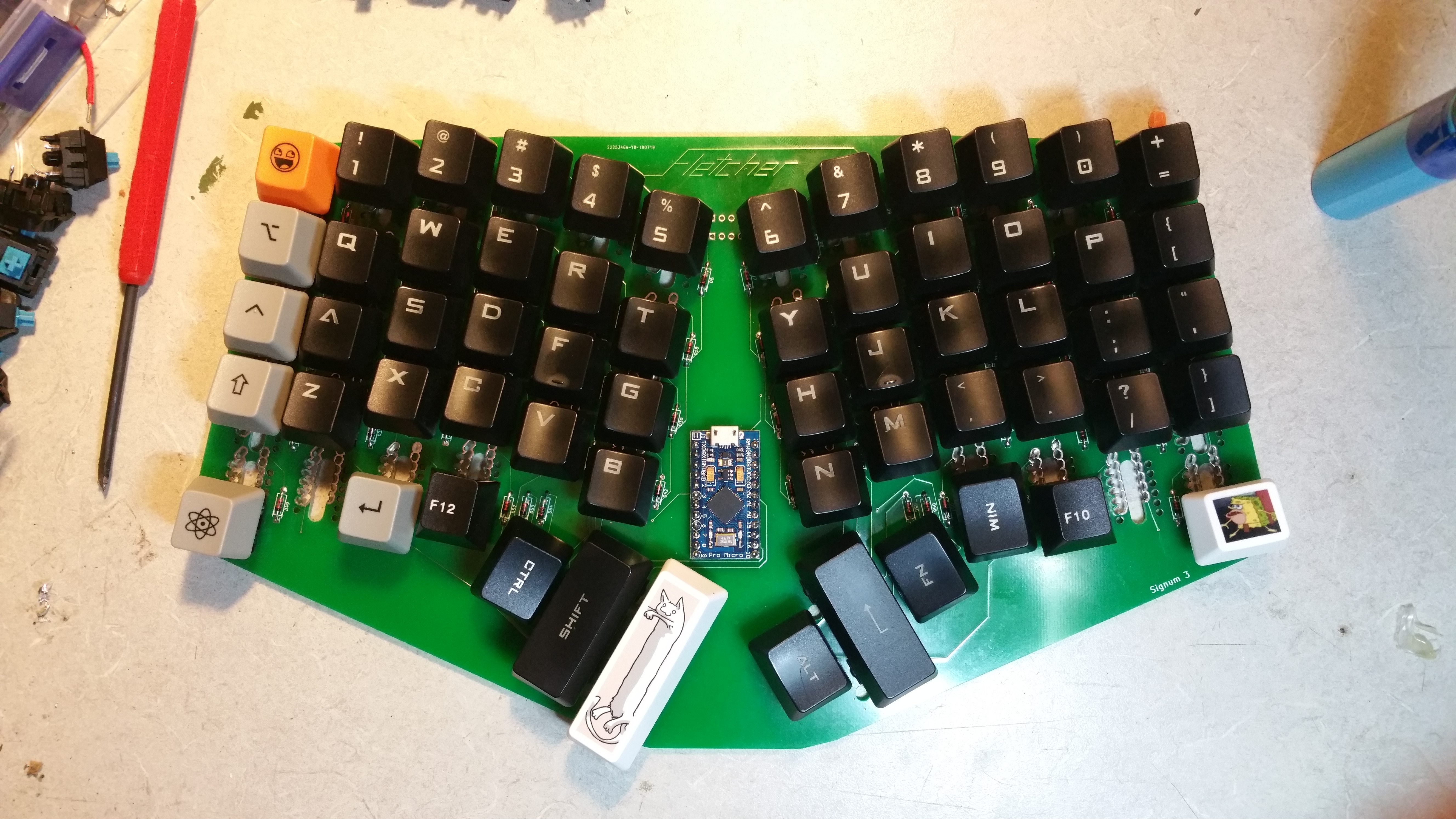

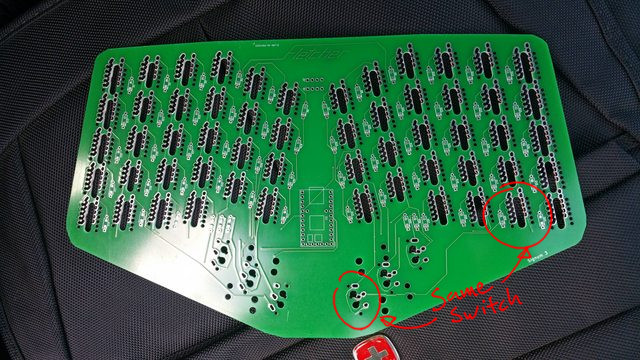

Signum 3.1 Circuit Board


Benefits Features:
  • Each column supports 5 or 6 switch positions!
  • Adjust switch height to YOUR by finger lengths
  • Adjustable thumb cluster with optional 3rd key
  • Low profile, light weight caseless design
  • Designed to sit on a laptop keyboard without activating buttons
  • Cable mount to prevent connector damage from accidental cable pulls
  • Ergonomic typing wrist angle
  • Now supports Teensy 2.0, Pro Micro, and the Elite-C
  • The first and only Signum with a number row
  • Programmable with QMK and EasyAVR 😱 😱
The Signum 3.1 PCB makes it easy to DIY a ergonomic mechanical keyboard customized to your needs and hand size! Add diodes, (1N4148) your choice of keycaps and switches (Cherry and Alps compatible), your choice of micro controller (Teensy 2.0 or ProMicro compatible!), and you're ready to solder!

$70 USD (includes CONUS shipping!) Friendship with Paypal over! If you have a payment method other than Paypal you prefer, please email me what alternative payment method you would like to see here.


Order using Bitcoin!

Send me an Email, then send 0.0036 BTC to

1MSPX5ha75wpaD3pHquNR71QtQqpJVfAN7

or request a freshly generated address
